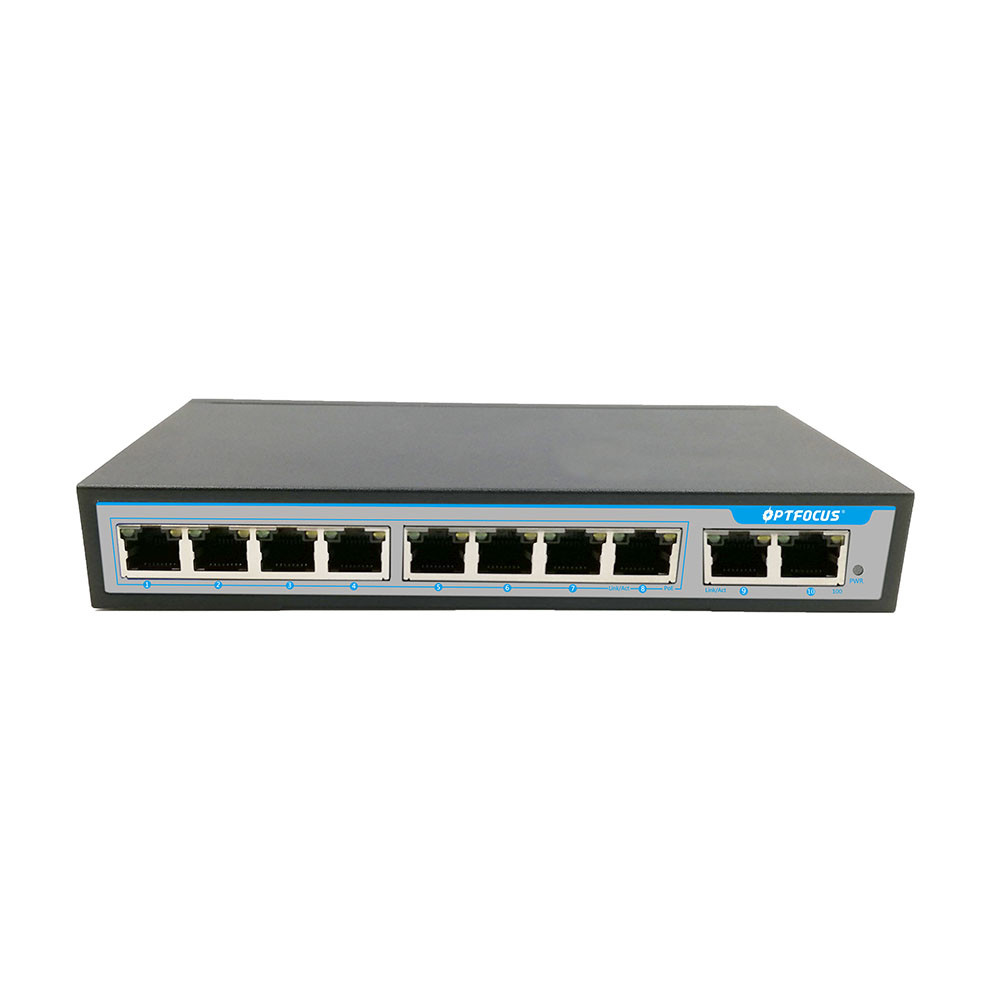

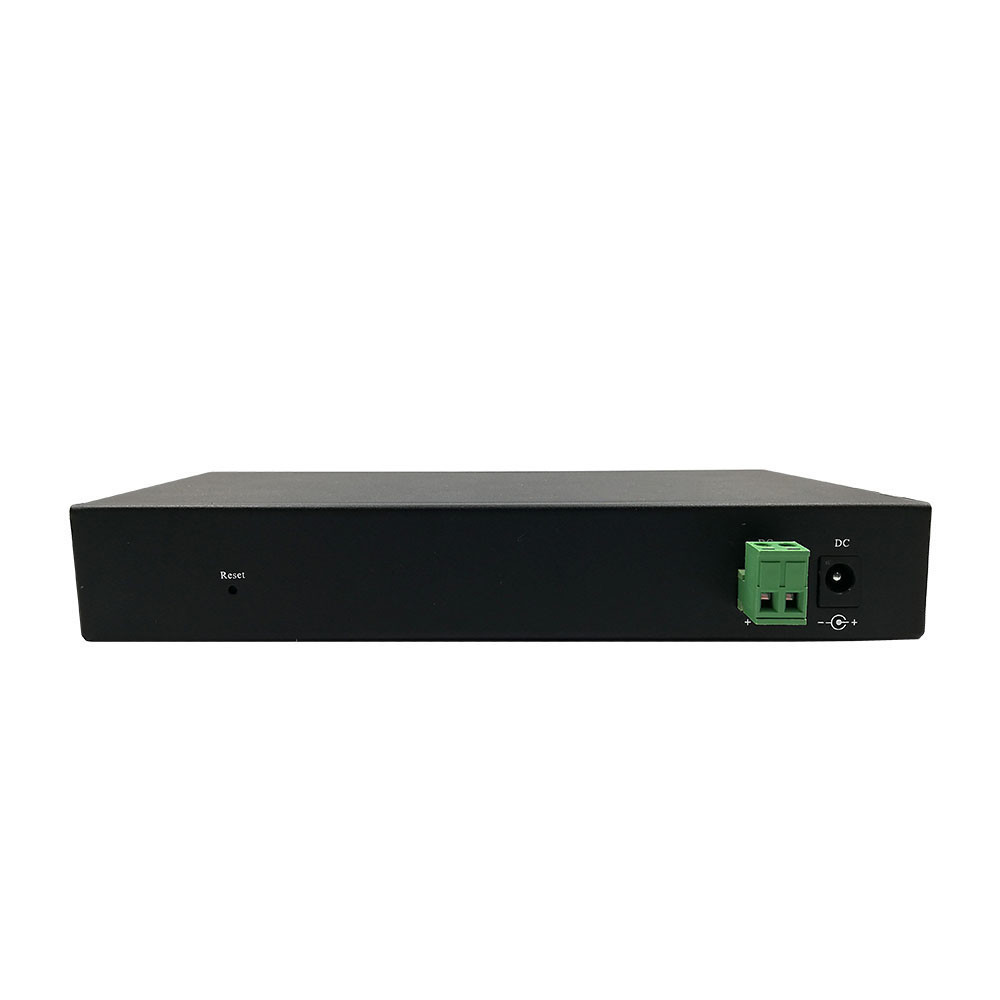

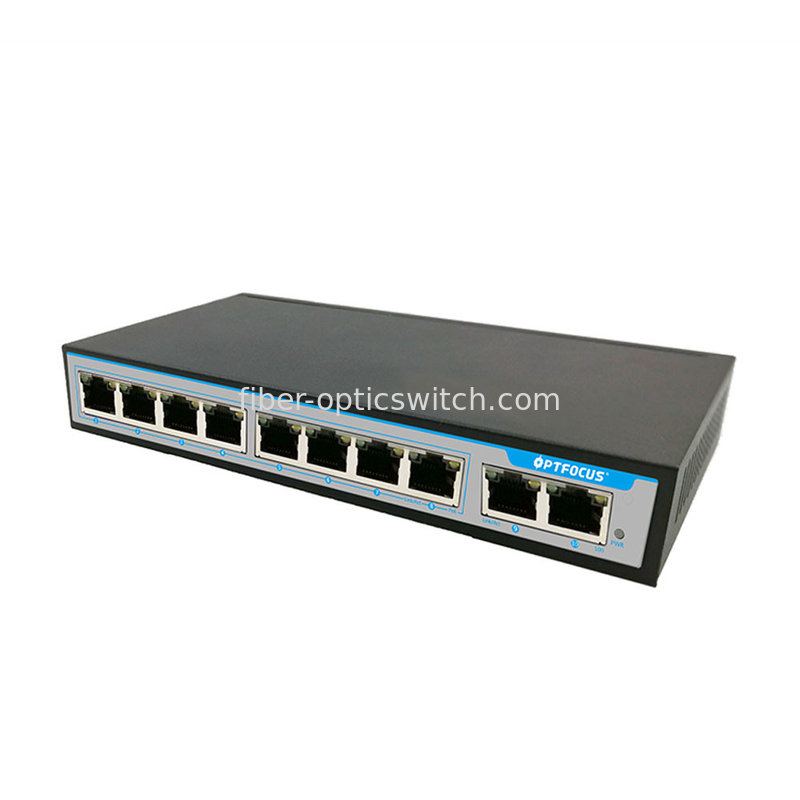

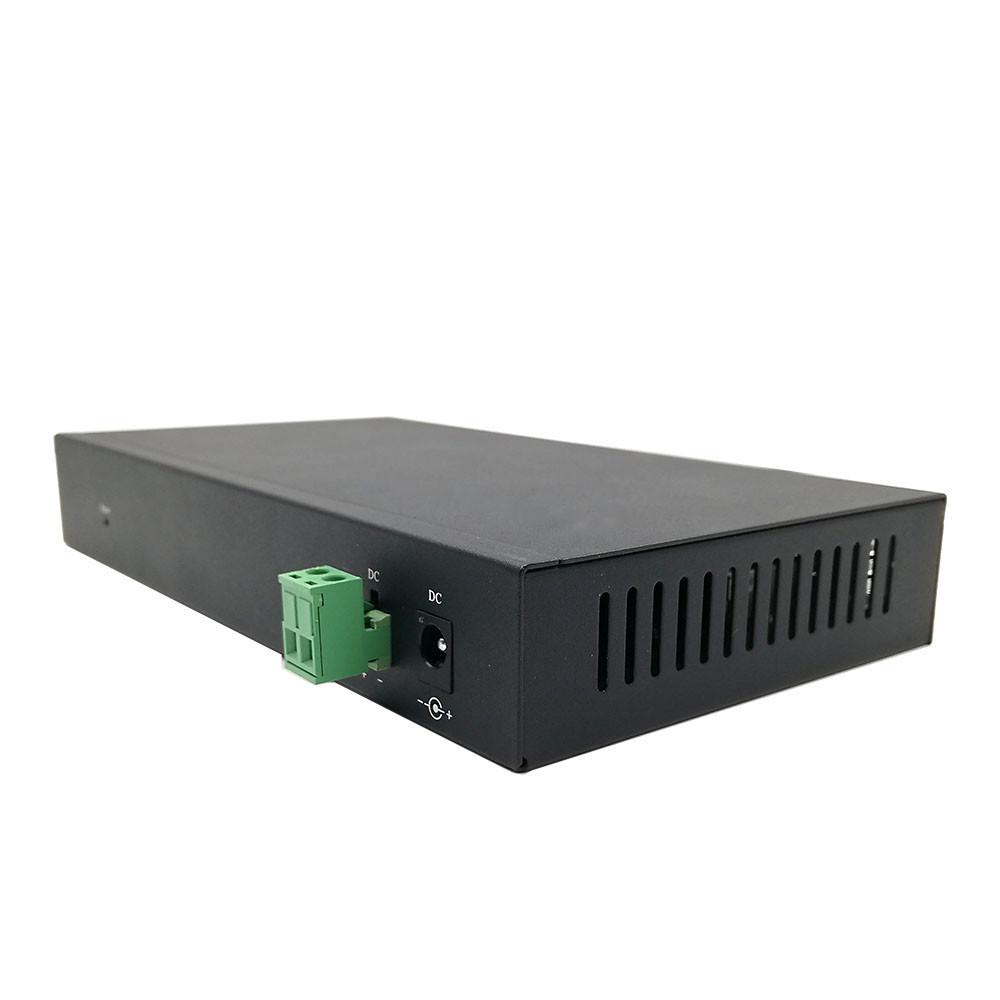

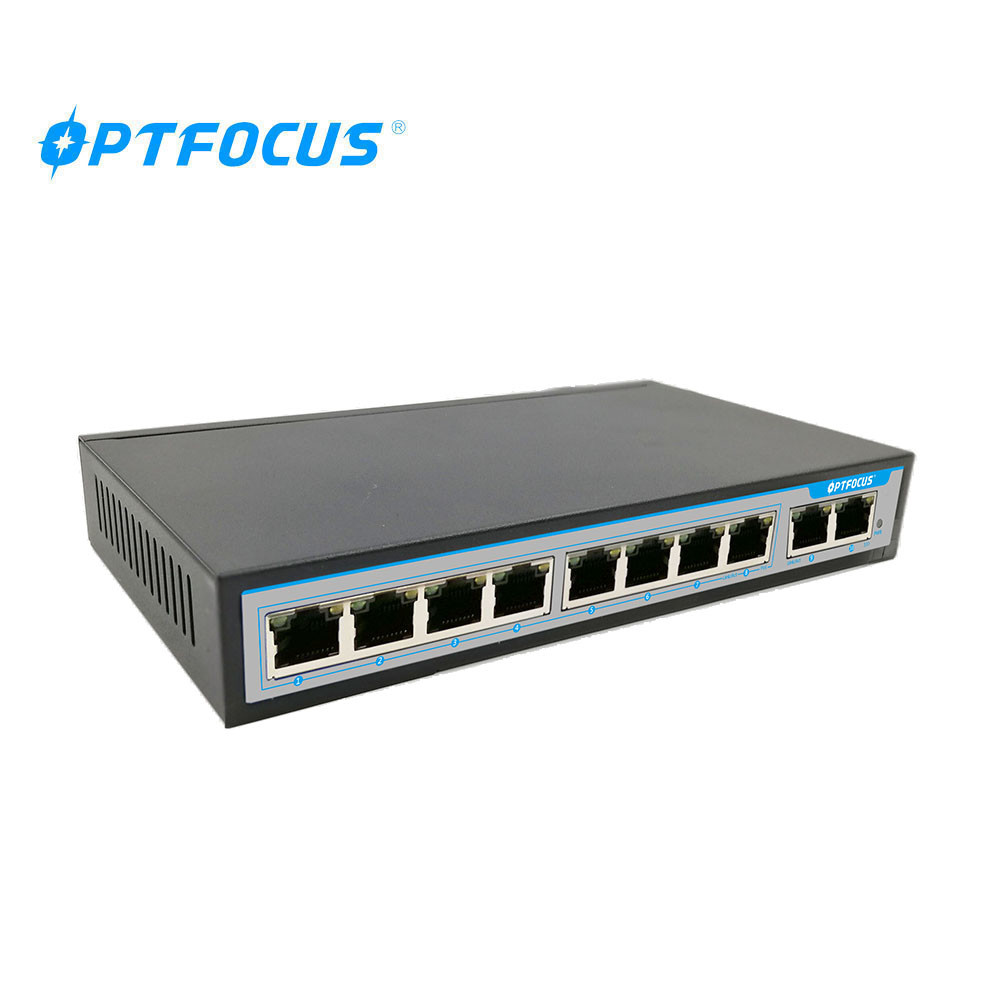

Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa

Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa
Informacion basica
Lugar de origen: China
Nombre de la marca: OPTFOCUS
Certificación: 3C,CE,RoHS
Número de modelo: OFS-PE-DT10
Cantidad de orden mínima: 2 pedazos
Precio: USD 12.9 1piece
Detalles de empaquetado: Caja y cartón
Tiempo de entrega: 6-14 días
Condiciones de pago: L/C, Western Union, T/T
Capacidad de la fuente: 10000 pedazos al mes
Contactar ahora
Función: POE, ayuda del VLAN Puertos: ≤ 8,24,16,10,2
Situación de los productos: Común Tarifa de transmisión: 10/100/1000Mbps, 10/100Mbps, el 10/100/1000M/10G
Capacidad del interruptor: 8.8Gbps, 52Gbps, 16Gbps, 53G, 1.25Tbits Modo de la comunicación: Lleno - &amp a dos caras; Semidúplex
Certificación: CE,CE RoHS FCC,FCC,RoHS,ISO9001 Nombre de producto: Interruptor de la fibra
Garantía: 1 año Puertos del POE: 1-8 ayuda portuaria PoE (15.4Watts)
Estándar del POE: IEEE802.3af /IEEE802.3 Tipo de dispositivo: Interruptor de Ethernet
Uso: sistema de la cámara CCTV, AP inalámbrico Fabricante: Shenzhen
Temperatura de funcionamiento: -40℃~ +85℃ Condición: Marca original del 100%

Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufacturers
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 0
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 1
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 2
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)
Bandwidth 2Gbps (non-blocking)
Address Database Size 1K
Forwarding Mode Store-And-Forward
Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

IEEE 802.1af DTE Power via MDI; IEEE 802.3af
LED Display System: power supply; Every Port: connecting, PoE working status
Power Supply Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
PoE Ports Port 1-8 support POE
PoE Port Power 15.4W for each POE port
PoE Standard IEEE 802.3af
Led indicator

Green: Ethernet

Red:PoE

SW:

On: VLAN, 100meters

Flashing: VLAN, 250meters

Off: VLAN Closed,100meters

Flashing: VLAN Closed, 250meters
Working Environment

Operating Temperature: -20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C;

Operating Humidity: 10% ~ 95%, non-condensing
Certification CE Mark ,commercial; CE/LVD EN60950, RoHS
Radiation CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B
Transmission Distance Data transmission distance: 100m, 250m( when on 10M data rate with Cat6.)
Warranty 2year warranty



Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 3
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 4
Packing & Delivery
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 5
Outdoor Waterproof Gigabit Ethernet PoE Switch 8 Port PoE Switch with Fiber For Video Surveillance Network Switch Manufa 6
Each product is packed in a high quality PE bag, Then put into a box or carton.
