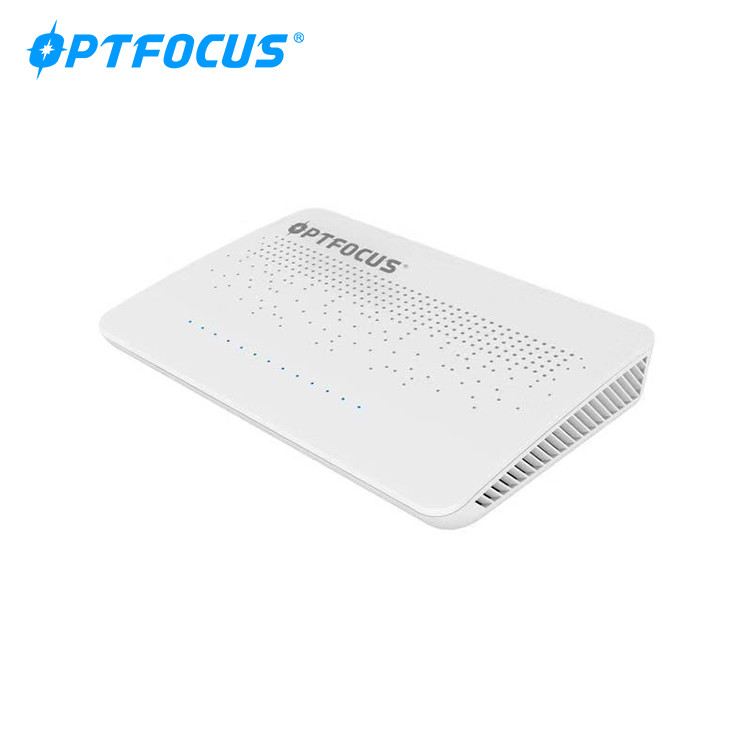

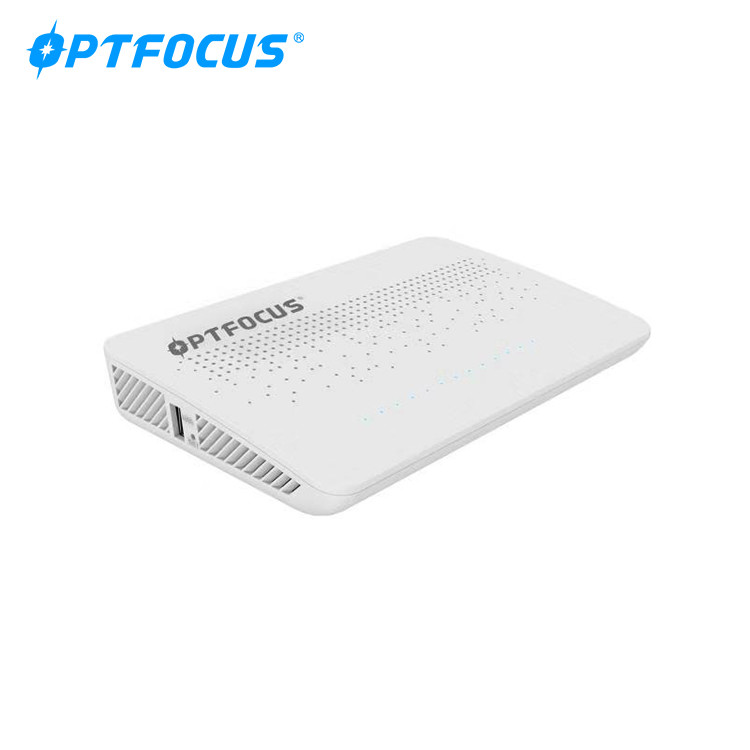

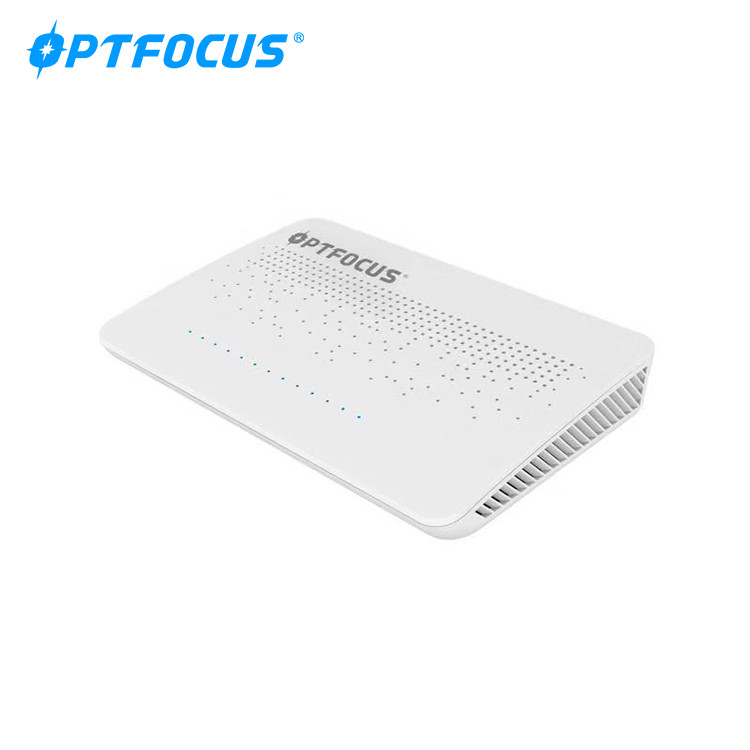

Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH

Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH
Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH
Informacion basica
Lugar de origen: China
Nombre de la marca: Optfocus
Certificación: ce.Rose
Número de modelo: OFSX624
Cantidad de orden mínima: 1
Precio: 10USD/PCS
Detalles de empaquetado: 20 PC por la caja del cartón
Tiempo de entrega: 5-12 días laborables
Condiciones de pago: Western Union, MoneyGram, T/T
Capacidad de la fuente: 5000 PC por mes
Contactar ahora
Uso: FTTH Tarifa de la fecha: 1.25G
Color: blanco tipo: XPON
LOGOTIPO: Modificado para requisitos particulares

Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH



Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH 0

1GE+3FE Ethernet ports with Wifi USB XPON ONU for FTTH solutionDescription:OFSX624-WU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.


Tech parameters description



Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)

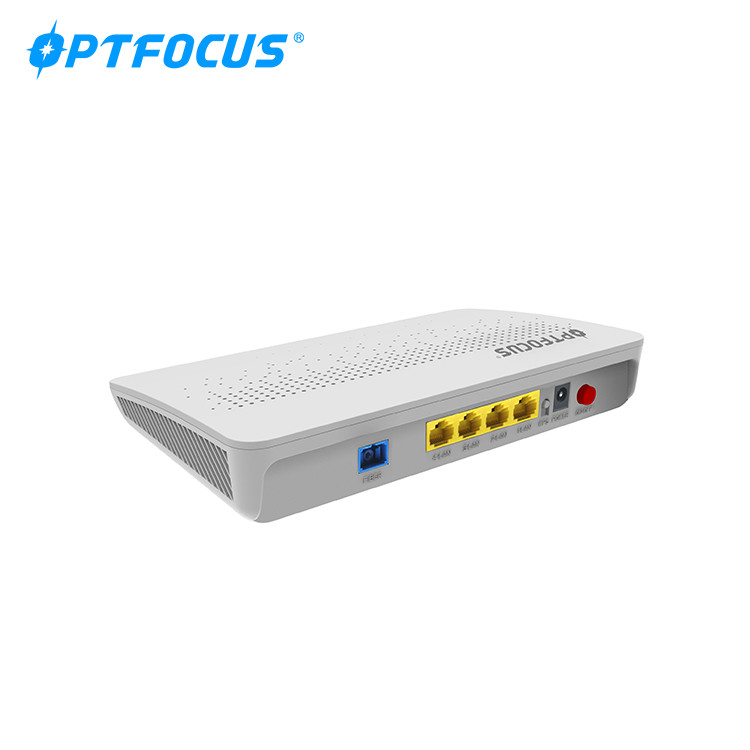

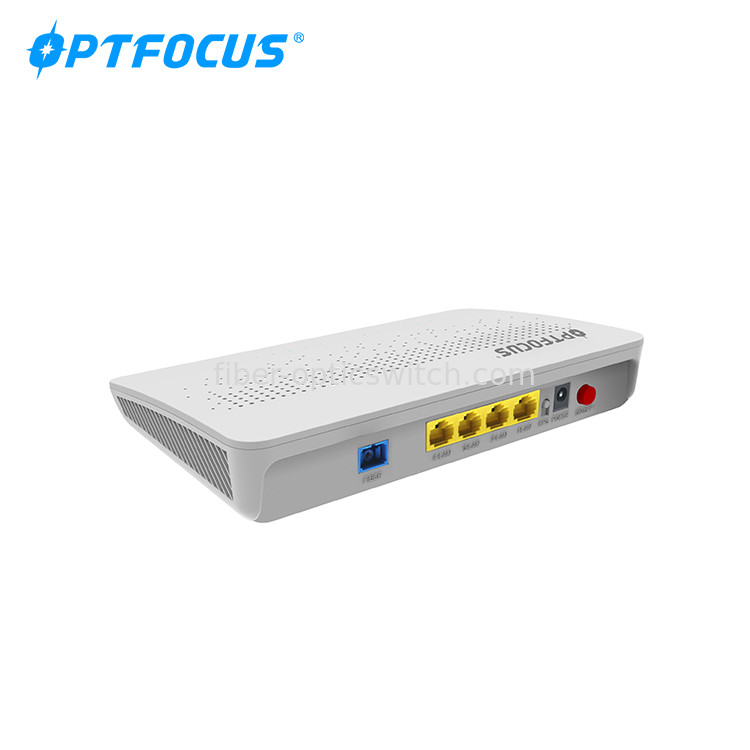

Down-link data interface 3*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 8 pcs
DC supply interface input＋12V 1.5A
Power ≤10W
Operating temperature -5～+55℃
Humidity 10～85%(non-condensation)
Storage temperature -30～+70℃
Dimension(MM) 188*125*35mm(mainframe)
Weight 0.5Kg(mainframe)
Tech features description
antenna

2T2R Mode

5DBI Gain ,Frequency:2.4G
rate 300Mbps PHY rate
encryption methods WFA,WPA,WPA2,WAPI

Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH 1Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH 2



Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH 3



symbol color meaning
PWR green ON:successfully connect with power OFF:fail to connect with power
PON green

ON:ONU port Link link correctly Flicker: PON registering

OFF:ONU ports link link faulty
LAN green ON: Link up correctly Flicker: data is transmitting OFF: link down faulty
WIFI green ON: WIFI is running OFF:WIFI startup fail
LOS red

Flicker: fail to connect with PON port

OFF: detected fiber to input




  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
  • Support China Telecom GPON CTC3.1 standard and expand OAM
  • Support triple churning encryption request
  • Support DBA reporting mechanism request
  • Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
  • Support the remote upgrade and download
  • Support status detection and fault report
  • Support to save configured parameters if power down
  • Support to configure the work mode at the user port
  • Support MDI-MDIX
  • Optical Fiber Communication 1.25G EPON ONU 1GE+3FE 4 Port ONT EPON For FTTH 4
  •
  •
  • -detection at the user port.
  • Support data encryption and decryption
  • Support access authentication based on serial number
  • Support access authentication based on MAC address
  • Support 802.1Q VLAN
  • Support rich QinQ VLAN functions and IGMP Snooping
  • Support traffic rule to modify the related priority.

l Support IEEE802.11n 2T2R WiFi function

  • Support to restore the factory settings
  • Support the remote reset and reboot
  • Support dying gasp outage alarm
  • Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

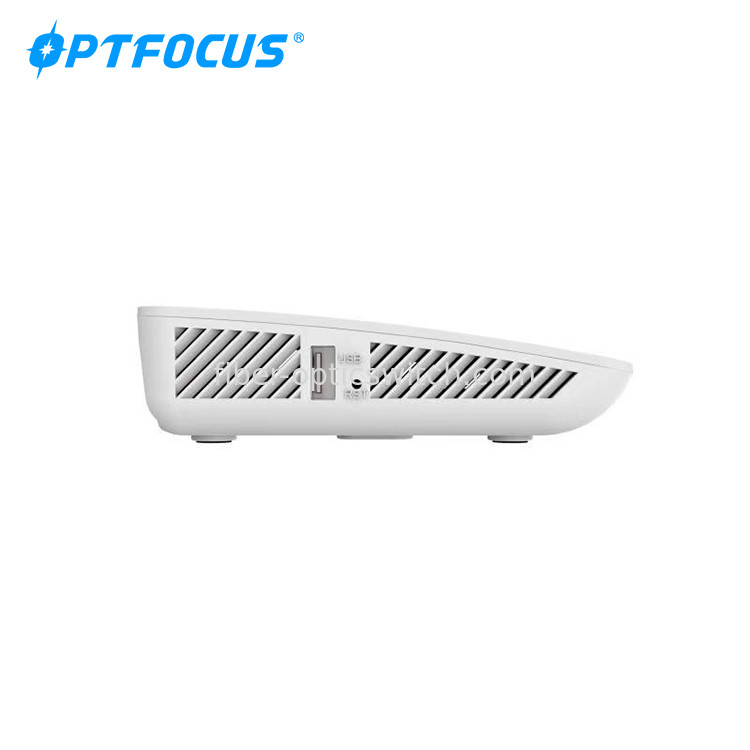

Support USB port

1GE+3FE Ethernet ports with Wifi USB XPON ONU for FTTH solutionDescription:OFSX624-WU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
1GE+3FE Ethernet ports with Wifi USB XPON ONU for FTTH solutionDescription:OFSX624-WU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.



1GE+3FE Ethernet ports with Wifi USB XPON ONU for FTTH solution

Description:

OFSX624-WU XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
